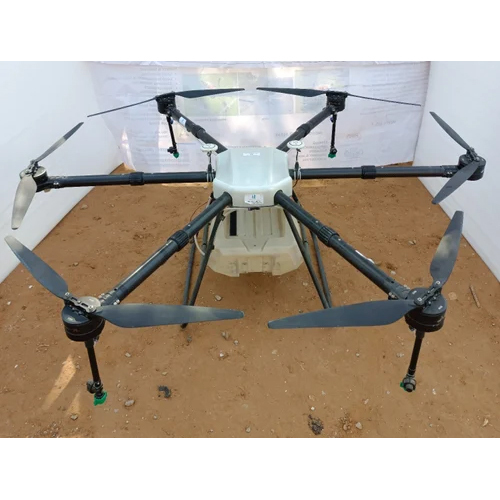

Agricultural Drone 16 Litre

Agricultural Drone 16 Litre Specification

Warranty
1 Year

Dimension (L*W*H)
1600*1600 Millimeter (mm)

Material
Carbon Fiber

Product Type
16 Litre Agricultural Drone

Color
Black & White

Usage
agro

Camera Type
Digital Camera

Sensor Type
CMOS

Camera Style
Dome Camera

Technology
GPS

Special Features
Other

Remote Control
Yes

Application
Other

Agricultural Drone 16 Litre Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
7 Days

Sample Policy
Contact us for information regarding our sample policy

Main Domestic Market
All India

Certifications
GST

About Agricultural Drone 16 Litre

Specifications : SIX rotor propulsion system 16-liter capacity No. of rotors: Hexa-copter (6 rotors) Tank capacity: 16 LTR Maximum flying speed: 10 m/s Maximum height of flying: 30 m Maximum takeoff weight: 30 Kg Maximum payload capacity : 16 Kg Endurance : 15-20 min (minimum) Hovering time (without payload): 20 min (minimum) Material : Carbon fiber and aviation Aluminum Flight range : Minimum 1 km within the line of sight Compact frame design: Foldable arms 2 Acres per flight 3-3.5 Acres per set of Battery

SPRAYING ASSEMBLY : Tank material : HDPE, PP or other corrosion resistant material No. of nozzles : 4 Type of nozzle : Flat fan spray/ Flat fan spray nozzle/ conical fan centrifugal nozzle/ Centrifugal booster nozzle/ Ceramic hollow cone high pressure atomizing nozzle with 400 to 500 ml/min flow- rate. Spray width/swath : 3.0 5.0 m Spray flow : 2 to 2.5 lit/min Droplet size : Minimum 100 pm Flow meter: Measurement Range: 0.5-5 lit/min, Accuracy: minimum 10 ml Spray efficiency : 4-6 ha/hour Motor : X8 motor (6 motor) 48voltage Power 250w Pump : 8 liter 12 to 14s operating voltage G85g weight, power G0w Dimension : 1G00mm*1600mm

BATTERY :

Type : Preferably Lithium Polymer Capacity : 22000mah Cycle : 250 minimum Charging time : 90 min(45+45) Voltage : 22-50 Volts Dimensions: 200mm Length X 91mm Width X 64mm Height Net Weight(ï20g): 2490g
